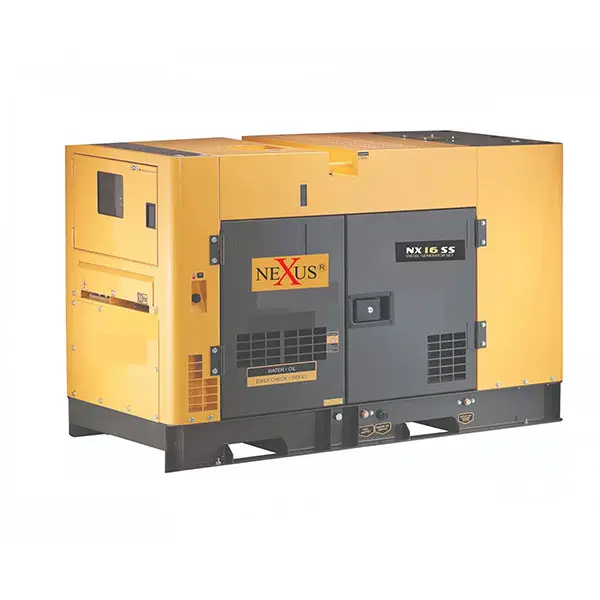

Nexus 13kva Diesel 1phase Super Silent Generator
$6,141.00
In Stock
Nexus 13kva Diesel 1phase Super Silent Generator
In Stock
Description
Nexus 13kva Diesel 1phase Super Silent Generator
Specifications
| Generator specification | ||||
| 1.1 | Set Model | NXS16SS | ||
| 1.2 | Prime Power | 10.4kw/13KVA | ||
| 1.3 | Standby Power | 11.4kw/14.3KVA | ||
| 1.4 | Power Factor | 0.8 | ||
| 1.5 | Rated Gen-set output | 230V 50HZ | ||
| 1.6 | Rated current | 56.5A | ||
| 1.7 | Rated speed (RPM) | 1500 | ||
| 1.8 | Engine Model & type | YND485D | ||
| 1.9 | Control Panel type | AMF25 | ||
| 1.10 | Noise level at 7m (dBA) | 70 | ||
| 1.11 | Dimension (L×W×H) | 1830*820*950 mm(silent type) | ||
| 1.12 | Fuel tank capacity | 40L(8h) | ||
| Generator specification | ||
| 1.1 | Set Model | NXS16SS |
| 1.2 | Prime Power | 10.4kw/13KVA |
| 1.3 | Standby Power | 11.4kw/14.3KVA |
| 1.4 | Power Factor | 0.8 |
| 1.5 | Rated Gen-set output | 230V 50HZ |
| 1.6 | Rated current | 56.5A |
| 1.7 | Rated speed (RPM) | 1500 |
| 1.8 | Engine Model & type | YND485D |
| 1.9 | Control Panel type | AMF25 |
| 1.10 | Noise level at 7m (dBA) | 70 |
| 1.11 | Dimension (L×W×H) | 1830*820*950 mm(silent type) |
| 1.12 | Fuel tank capacity | 40L(8h) |
| Engine specification | ||
| 2.1 | Engine Model | YND485D |
| 2.2 | Governor/Class | Mechanical |
| 2.3 | Cylinder No. | 4 |
| 2.4 | Cylinder arrangement | Vertical |
| 2.5 | Type of injection | Direct injection |
| 2.6 | Aspiration | Natural Aspiration |
| 2.7 | Cooling mode | Water cooled |
| 2.8 | Bore and stroke | 85*95mm |
| 2.9 | Compression ratio | 18.0:1 |
| 2.10 | Displacement | 2.156L |
| 2.11 | Prime power | 17KW |
| 2.12 | Battery capacity | 45Ah *1 |
| 2.13 | Fuel consumption (100% prime load ) | 4.93L/H |
| 2.14 | Fuel Type | 0# Diesel (Natural temperature) |
| 2.15 | Filter system | Adopt lubricating oil filter, fuel filter and air filter |
| 2.16 | Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
| Alternator specification | ||
| 3.1 | Alternator Model | S164G128C4 |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230V 50HZ |
| 3.4 | Rated Speed | 1500RPM |
| 3.5 | Poles | 4 |
| 3.6 | A.V.R Mode | SX460 |
| 3.7 | Power Factor | 0.8 |
| 3.8 | Phase & Wires | 1 phase |
| 3.9 | Rated Current | 55A |
| 3.10 | Efficiency | 81.5% |
| 3.11 | Insulation Class | H |
| 3.12 | Protection Class | IP23 |
| 3.13 | Max. Ambient Temperature | 40℃ |
| 3.14 | Weight | 96Kg |
