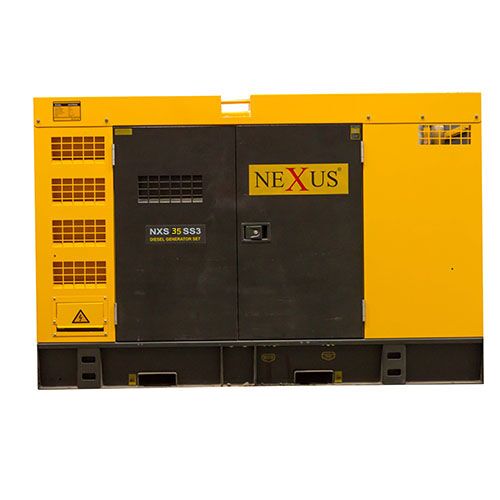

Nexus 30kva Diesel 3phase Super Silent Generator
$7,791.00
Out of stock
Out of stock
Description
Super Silent Three-Phase Diesel Generator with a maximum power of 30kVA, combining resistance, stability, reliability and a low noise level. Suitable for power supply in emergencies, homes, industry, construction and commerce. Nexus 30kva Diesel 3phase Super Silent Generator
Specifications
| SET MODEL | NX35SS3 |
| PRIME POWER | 24KW/30KVA |
| STANDBY POWER | 26.4KW/33KVA |
| POWER FACTOR | 0.8 |
| RATED OUTPUT | 220V -50Hz |
| RATED CURRENT | 45A |
| RATED SPEED (RPM) | 1500 |
| ENGINE MODEL | Y4102D |
| CONTROL PANEL TYPE | SMART GEN HGM4020N |
| NOISE LEVEL @ 7M (‘dBA) | 65 |
| DIMENSION ( L x W x H) | 1840*850*1100mm |
| FUEL TANK CAPACITY (LTRS) | 50 |
| Generator specification | ||
| 1.1 | Set Model | NXS35SS3 |
| 1.2 | Prime Power | 24kw/30KVA |
| 1.3 | Standby Power | 26.4kw/33KVA |
| 1.4 | Power Factor | 0.8 |
| 1.5 | Rated Gen-set output | 230/400V 50HZ |
| 1.6 | Rated current | 43A |
| 1.7 | Rated speed (RPM) | 1500 |
| 1.8 | Engine Model & type | Y4102D |
| 1.9 | Control Panel type | AMF25 |
| 1.10 | Noise level at 7m (dBA) | 70 |
| 1.11 | Dimension (L×W×H) | 1980*850*1000 mm(silent type) |
| 1.12 | Fuel tank capacity | 55L(8h) |
| Engine specification | ||
| 2.1 | Engine Model | Y4102D |
| 2.2 | Governor/Class | Mechanical |
| 2.3 | Cylinder No. | 4 |
| 2.4 | Cylinder arrangement | Vertical |
| 2.5 | Type of injection | Direct injection |
| 2.6 | Aspiration | Natural Aspiration |
| 2.7 | Cooling mode | Water cooled |
| 2.8 | Bore and stroke | 102*118mm |
| 2.9 | Compression ratio | 18.0:1 |
| 2.10 | Displacement | 3.875L |
| 2.11 | Prime power | 33KW |
| 2.12 | Battery capacity | 45Ah *2 |
| 2.13 | Fuel consumption (100% prime load ) | 7.61 L/H |
| 2.14 | Fuel Type | 0# Diesel (Natural temperature) |
| 2.15 | Filter system | Adopt lubricating oil filter, fuel filter and air filter |
| 2.16 | Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
| Alternator specification | ||
| 3.1 | Alternator Model | FG184G |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V 50HZ |
| 3.4 | Rated Speed | 1500RPM |
| 3.5 | Poles | 4 |
| 3.6 | A.V.R Mode | SX460 |
| 3.7 | Power Factor | 0.8 |
| 3.8 | Phase & Wires | 3 phase 4 wires |
| 3.9 | Rated Current | 45A |
| 3.10 | Efficiency | 86.4% |
| 3.11 | Insulation Class | H |
| 3.12 | Protection Class | IP23 |
| 3.13 | Max. Ambient Temperature | 40℃ |
| 3.14 | Weight | 152Kg |
