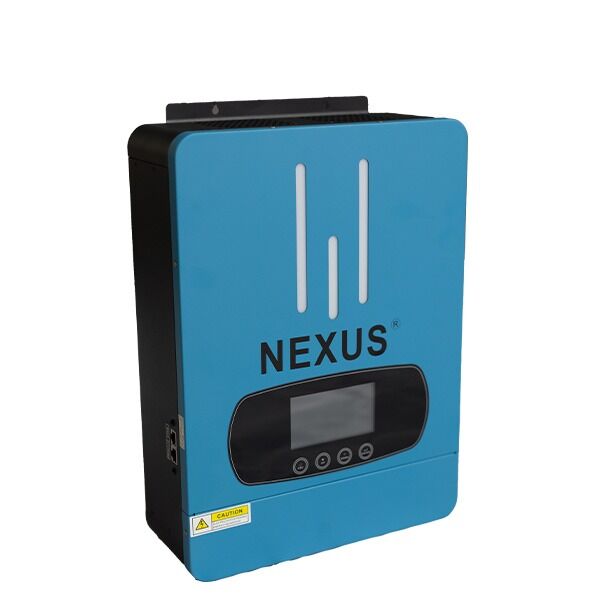

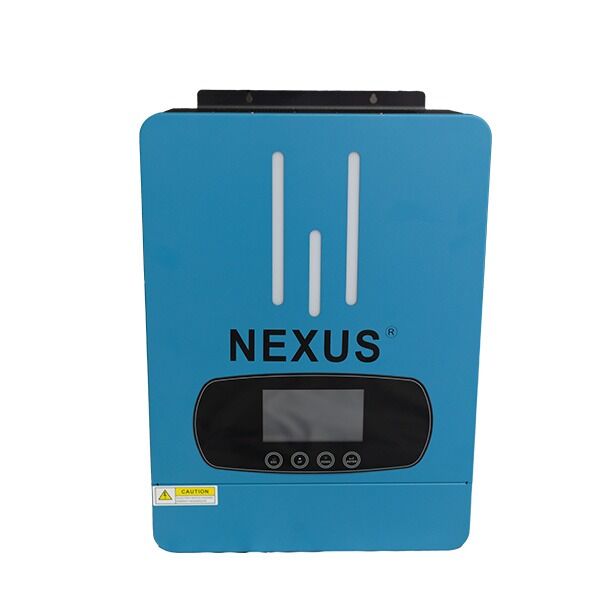

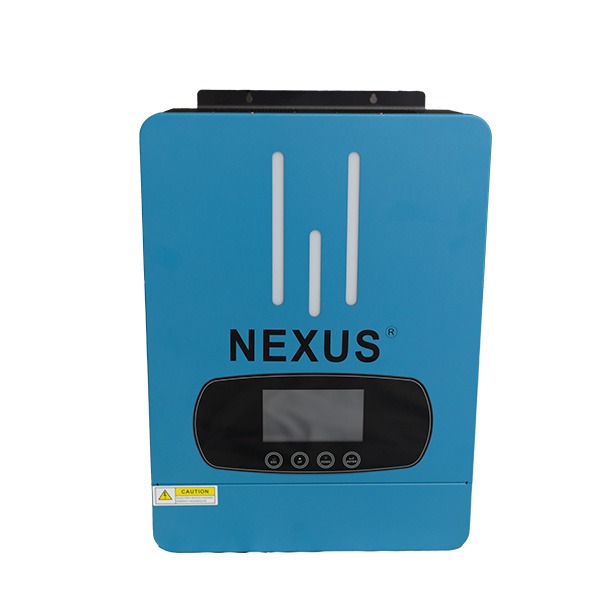

Nexus 6kva inverter Pro 48V 80A 450VDC

Name: Nexus 6kva inverter Pro 48V 80A 450VDC
Brand: Nexus Inverter
SKU: NXIP7000
Availability: InStock

$330.00

In Stock

In Stock

SKU: NXIP7000

Description

Nexus 6kva inverter Pro 48V 80A 450V

Nexus	6KVA
OPERATING TEMPERATURE RANGE	0-55°C
INVERTER MODE
RATED POWER	7000VA/6200W
DC INPUT	48VDC, 130A
AC OUTPUT	230VAC, 50/60Hz, 26.9A 1ႴႴ
FULL LOAD	6200W
MAXIMUM MAIN LOAD	6200W
MAXIMUM EPS LOAD	2066W
MAXIMUM LOAD CUT OFF VOLTAGE	44V
MAIN LAOD RETURN VOLTAGE	54V
AC CHARGER MODE
AC INPUT	230VAC, 50/60Hz, 43.6A 1ႴႴ
DC OUTPUT	54VDC
MAX	80A
DEFAULT	30A
AC OUTPUT	230VAC, 50/60Hz, 26.9A 1ႴႴ
SOLAR CHARGER MODE
RATED POWER	6000W
MAX CHARGER	110A
NOMINAL OPERATING VOLTAGE	240VDC
MAX SOLAR VOLTAGE (VOC)	450VDC
MPPT VOLTAGE RANGE	55-450VDC
INGRESS PROTECTION	IP22
PRORECTICE CLASS	1

Nexus	6KVA
OPERATING TEMPERATURE RANGE	0-55°C
INVERTER MODE
RATED POWER	7000VA/6200W
DC INPUT	48VDC, 130A
AC OUTPUT	230VAC, 50/60Hz, 26.9A 1ႴႴ
FULL LOAD	6200W
MAXIMUM MAIN LOAD	6200W
MAXIMUM EPS LOAD	2066W
MAXIMUM LOAD CUT OFF VOLTAGE	44V
MAIN LAOD RETURN VOLTAGE	54V
AC CHARGER MODE
AC INPUT	230VAC, 50/60Hz, 43.6A 1ႴႴ
DC OUTPUT	54VDC
MAX	80A
DEFAULT	30A
AC OUTPUT	230VAC, 50/60Hz, 26.9A 1ႴႴ
SOLAR CHARGER MODE
RATED POWER	6000W
MAX CHARGER	110A
NOMINAL OPERATING VOLTAGE	240VDC
MAX SOLAR VOLTAGE (VOC)	450VDC
MPPT VOLTAGE RANGE	55-450VDC
INGRESS PROTECTION	IP22
PRORECTICE CLASS	1
