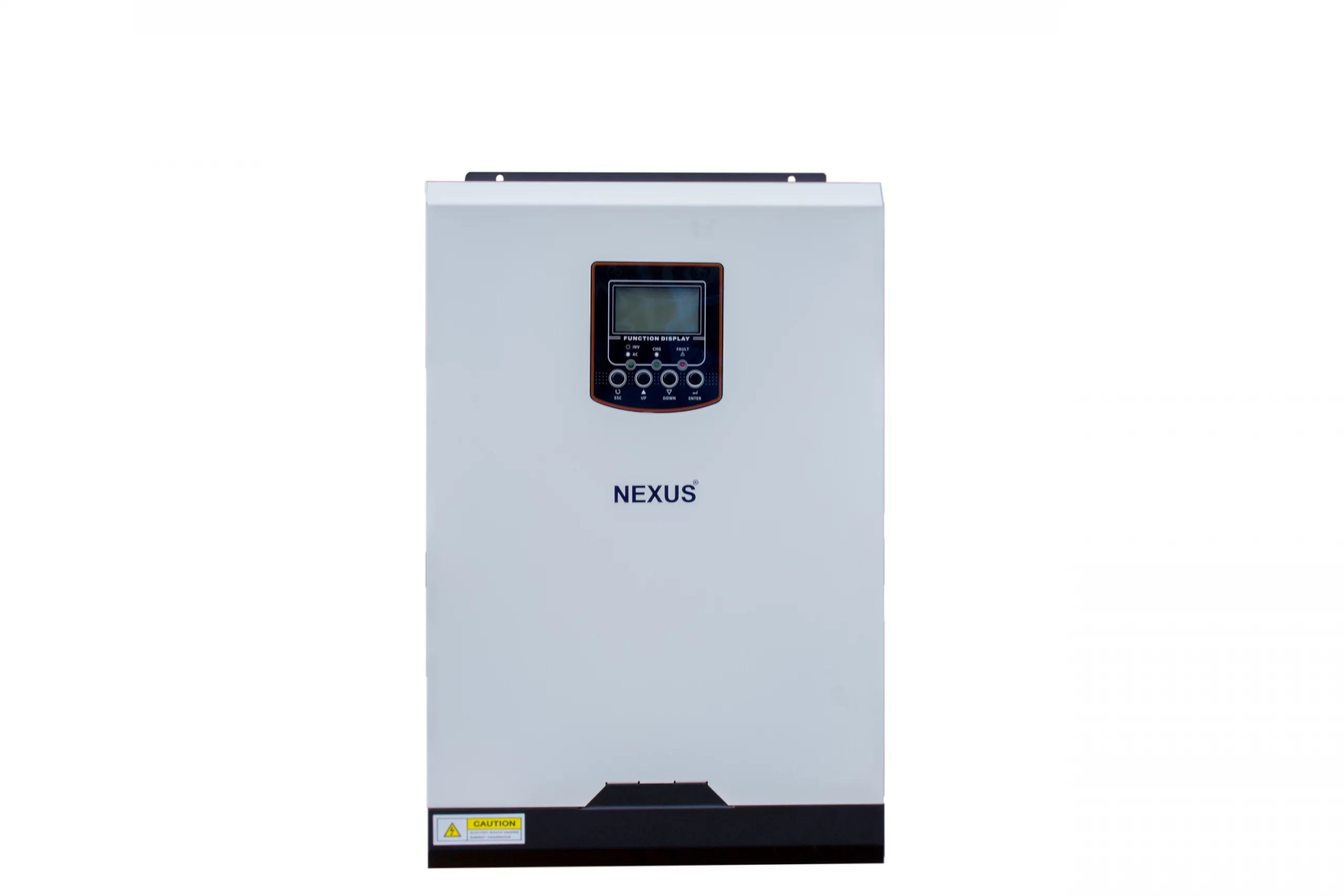

Nexus Off Grid 3kva Inverter 24v Naxvm300024+
$375.00
Out of stock
Nexus Off Grid 3kva Inverter 24v Naxvm300024+
Out of stock
Description
Nexus Off Grid 3kva Inverter 24v Naxvm300024+
Specifications
| Model | 3kva 24v |
| Related Power | 3000VA/3000W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC (For Personal Computers) ; 90-280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC± 5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 90% – 93% |
| Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charge Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum PV Array Power | 1500W |
| MPP Range @ Operating Voltage | 30 – 115VDC |
| Maximum Solar Charge Current | 60A |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 100 x 300 x 440 |
| Net Weight (kgs) | 9.5 |
| Communication Interface | USB/RS234 |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non Condensing) |
| Operating Temperature | 10°C to 50°C |
| Storage Temperature | 15°C to 60°C |
