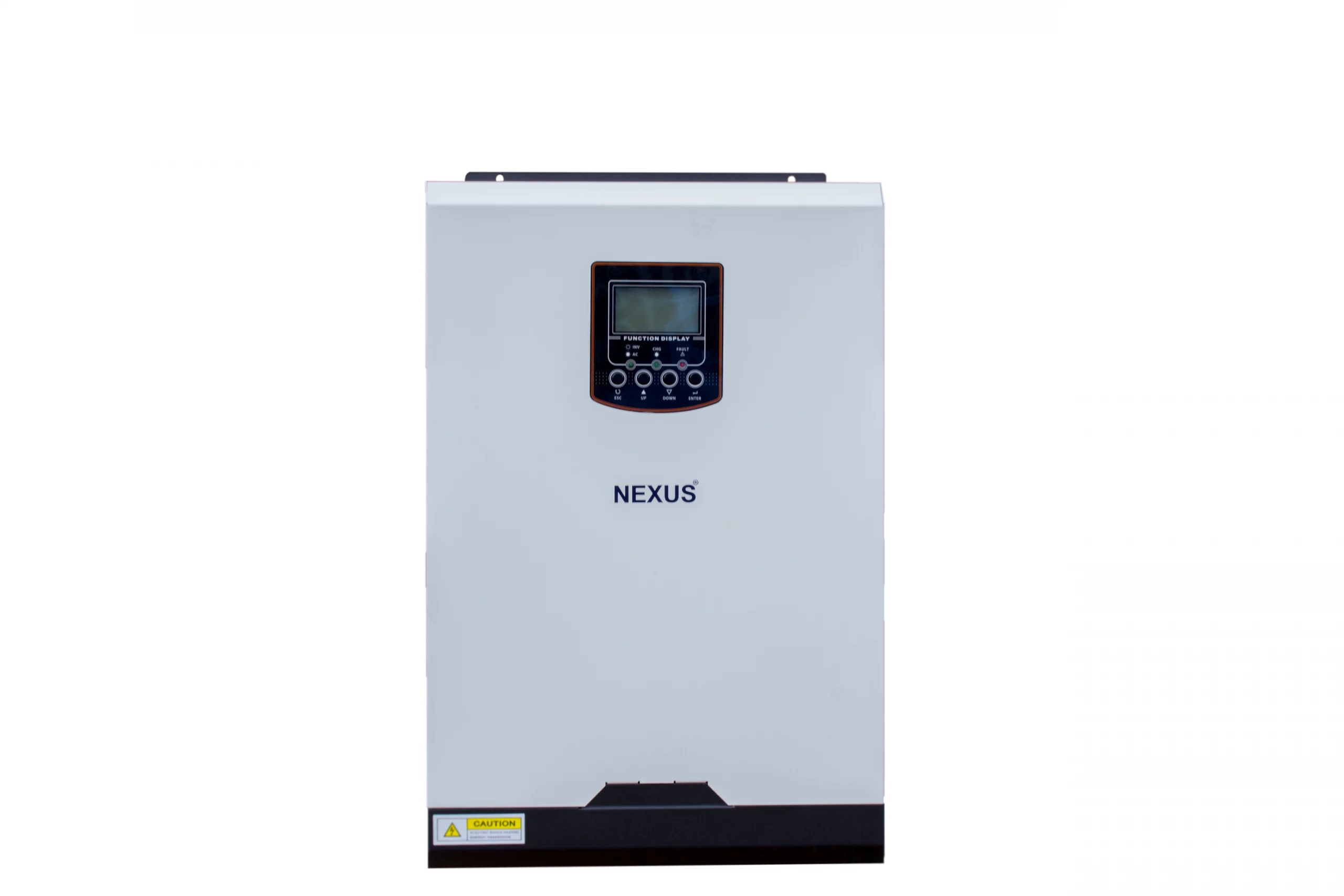

Nexus Off Grid 5kva Inverter 48v NAXVM500048
Inverters, Nexus Inverters, Solar
Nexus Off Grid 5kva Inverter 48v NAXVM500048
$625.00
Nexus Off Grid 3kva Inverter 24v Naxvm300024+
Out of stock
Nexus Off Grid 3kva Inverter 24v Naxvm300024+
Specifications
Model | 3kva 24v |
Related Power | 3000VA/3000W |
INPUT | |
Voltage | 230VAC |
Selectable Voltage Range | 170-280VAC (For Personal Computers) ; 90-280VAC (For Home Appliances) |
Frequency Range | 50Hz/60Hz (Auto Sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | 230VAC± 5% |
Surge Power | 6000VA |
Efficiency (Peak) | 90% – 93% |
Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) |
Waveform | Pure Sine Wave |
BATTERY | |
Battery Voltage | 24VDC |
Floating Charge Voltage | 27VDC |
Overcharge Protection | 33VDC |
SOLAR CHARGER & AC CHARGER | |
Solar Charge Type | MPPT |
Maximum PV Array Open Circuit Voltage | 145VDC |
Maximum PV Array Power | 1500W |
MPP Range @ Operating Voltage | 30 – 115VDC |
Maximum Solar Charge Current | 60A |
Maximum AC Charge Current | 60A |
Maximum Charge Current | 120A |
PHYSICAL | |
Dimension, D x W x H (mm) | 100 x 300 x 440 |
Net Weight (kgs) | 9.5 |
Communication Interface | USB/RS234 |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non Condensing) |
Operating Temperature | 10°C to 50°C |
Storage Temperature | 15°C to 60°C |
