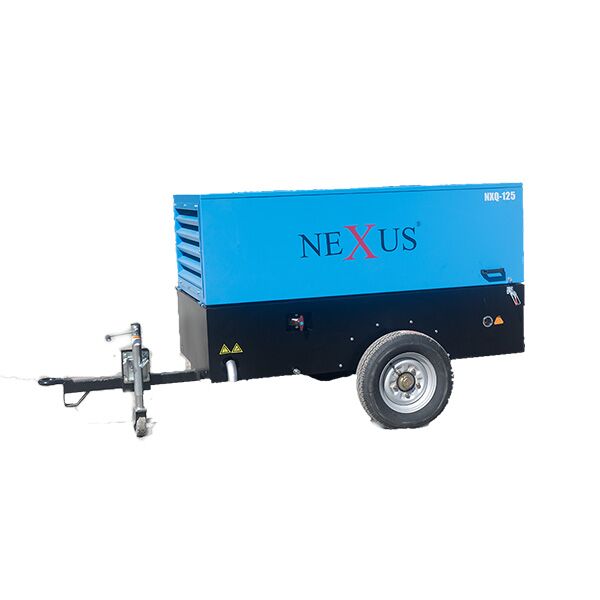

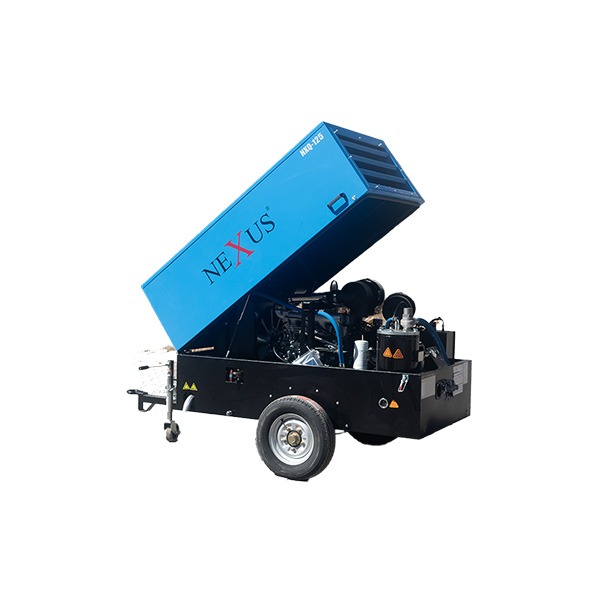

Nexus Screw Type Compressor 123 cfm
$7,900.00
In Stock
Elepaq Screw Type Compressor, engineered for high-performance air compression in industrial and commercial applications.
This product has been added to 52 people'scarts.
In Stock
Description
| Model | NXQ125 |
| Free Air Delivery @ Nominal Working Pressure | 125CFM |
| Nominal Working Pressure | 8 Bars/PSI |
| Min/Max Unloading Pressure | 6.0-9 Bars |
| Compression Stages | 1 |
| Air Receiver Capacity | 29ltrs |
| Compressor Oil Capacity | 18ltrs |
| Approx Air Outlet Temperature | 50°C |
| Typical Oil Content of Compressed Air | 5mg/m³ |
| Fuel Tank Capacity | 70ltrs |
| Outlet Valve Configuration | 2*G3/4 |
| Sound Pressure Level (ISO2125) | 80dBA |
| Max Ambient Temperature at sea level | 46°C |
| Max Altitude | 1500mtrs |
| Min Starting Temperature | -10°C |
| Standard Towing speed | 20km/hr |
| HP Developed @ rated speed | 37kW |
| Cylinders | 4 |
| Cooling System | Water Cooling |
| Max Engine Oil Capacity | 12Ltrs, Effective 5.3Ltrs |
| Engine Swept Volume | 2.67Ltrs |
| Unloading Speed/ Max loading speed | 1900-2650rpm |
| Dimensions without axel/tire | 1820*1000*1000mm |
