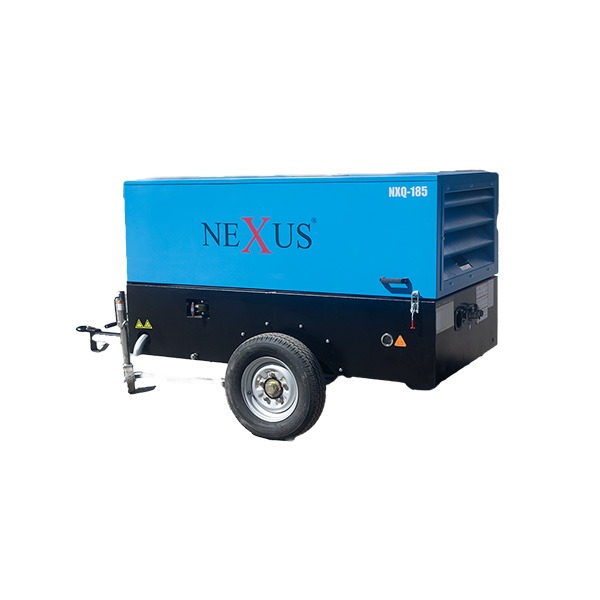

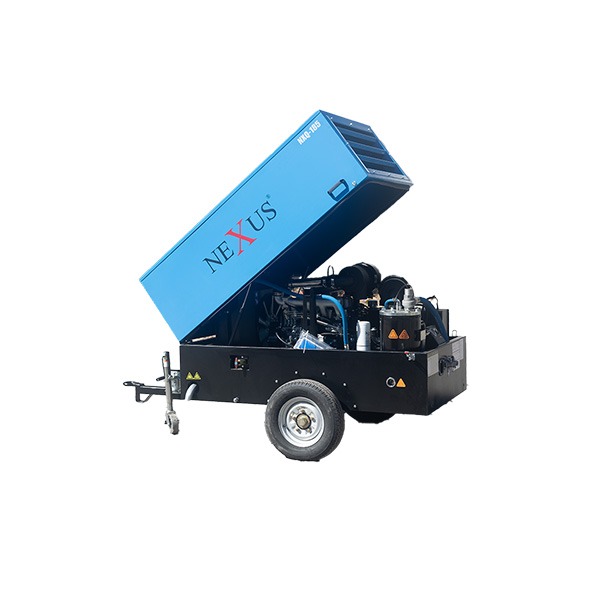

Nexus Screw Type Compressor 185 cfm

Name: Nexus Screw Type Compressor 185 cfm
Brand: Nexus Compressor
SKU: NXSTC185
Availability: InStock

$8,350.00

In Stock

Elepaq Screw Type Compressor, engineered for high-performance air compression in industrial and commercial applications.

This product has been added to 4 people'scarts.

In Stock

SKU: NXSTC185

Description

Model	NXQ185
Free Air Delivery @ Nominal Working Pressure	185CFM
Nominal Working Pressure	8 Bars/PSI
Min/Max Unloading Pressure	6.0-9 Bars
Compression Stages	1
Air Receiver Capacity	29ltrs
Compressor Oil Capacity	18ltrs
Approx Air Outlet Temperature	50°C
Typical Oil Content of Compressed Air	5mg/m³
Fuel Tank Capacity	70ltrs
Outlet Valve Configuration	2*G3/4
Sound Pressure Level (ISO2125)	80dBA
Max Ambient Temperature at sea level	46°C
Max Altitude	1500mtrs
Min Starting Temperature	-10°C
Standard Towing speed	20km/hr
HP Developed @ rated speed	37kW
Cylinders	4
Cooling System	Water Cooling
Max Engine Oil Capacity	12Ltrs, Effective 5.3Ltrs
Engine Swept Volume	2.67Ltrs
Unloading Speed/ Max loading speed	1900-2650rpm
Dimensions without axel/tire	182010001000mm

Model	NXQ185
Free Air Delivery @ Nominal Working Pressure	185CFM
Nominal Working Pressure	8 Bars/PSI
Min/Max Unloading Pressure	6.0-9 Bars
Compression Stages	1
Air Receiver Capacity	29ltrs
Compressor Oil Capacity	18ltrs
Approx Air Outlet Temperature	50°C
Typical Oil Content of Compressed Air	5mg/m³
Fuel Tank Capacity	70ltrs
Outlet Valve Configuration	2*G3/4
Sound Pressure Level (ISO2125)	80dBA
Max Ambient Temperature at sea level	46°C
Max Altitude	1500mtrs
Min Starting Temperature	-10°C
Standard Towing speed	20km/hr
HP Developed @ rated speed	37kW
Cylinders	4
Cooling System	Water Cooling
Max Engine Oil Capacity	12Ltrs, Effective 5.3Ltrs
Engine Swept Volume	2.67Ltrs
Unloading Speed/ Max loading speed	1900-2650rpm
Dimensions without axel/tire	182010001000mm
